PRICING:

YOUTUBE:  TRAILBLAZER TB-2023

https://youtu.be/osgJozBK32Y

PRICING:

TRAILBLAZER (ATV & SXS Versions:) Updated 1-19-23

  • $2,650.00 –  ATV – 5 Blade Unit
  • $3,100.00 –   SXS – 6 Blade Unit less Custom Bumper Mount
  • $3,300.00 –  SXS – 6 Blade Unit w/Custom Bumper Mount
  • $3,450.00 –  SXS – 6 Blade Unit w/Electric Start Option Added to Above SXS Unit

IT IS NOT RECOMMENDED TO USE THE ATV-VERSION OR THE SXS VERSION ON A TRACTOR.  THE FRAME, ENGINE, BEARINGS AND SHAFTS ARE SMALLER TO HELP MAKE THE UNIT LIGHT ENOUGH TO NOT OVERLOAD THE ATV OR SXS.

ATV ARE PRICED WITH HONDA GC160 ENGINES, UPGRADE TO GX160 or KOHLER Command Pro Engines ADDS $200.00.  eStart Units only come with KOHLER Command Pro Engines.


TRAILBLAZER-HD – 5 Blade  (Gas Engine TRACTOR / SKID STEER Versions:) Updated 1-19-23

  • $3,300.00 – TRAILBLAZER-HD, TBHD(LH)-FSM-13 –  5-Blade Unit w/Fork Lift Skid Mount (Left Hand Mount) includes Canopy Brush Guard over engine.  p/n: TBHD(LH)-FSM- 13,  Unit has a 13″ Blade offset from leftmost fork position.
  • $3,400.00 – TRAILBLAZER-HD, TBHD(RH)-FSM-18,  5-Blade Unit w/Fork Lift Skid Mount (Right Hand Mount) this unit does not require a Canopy Brush Guard by design. p/n: TBHD(RH)-FSM-18, Unit has a 18″ Blade offset from Rightmost fork position.

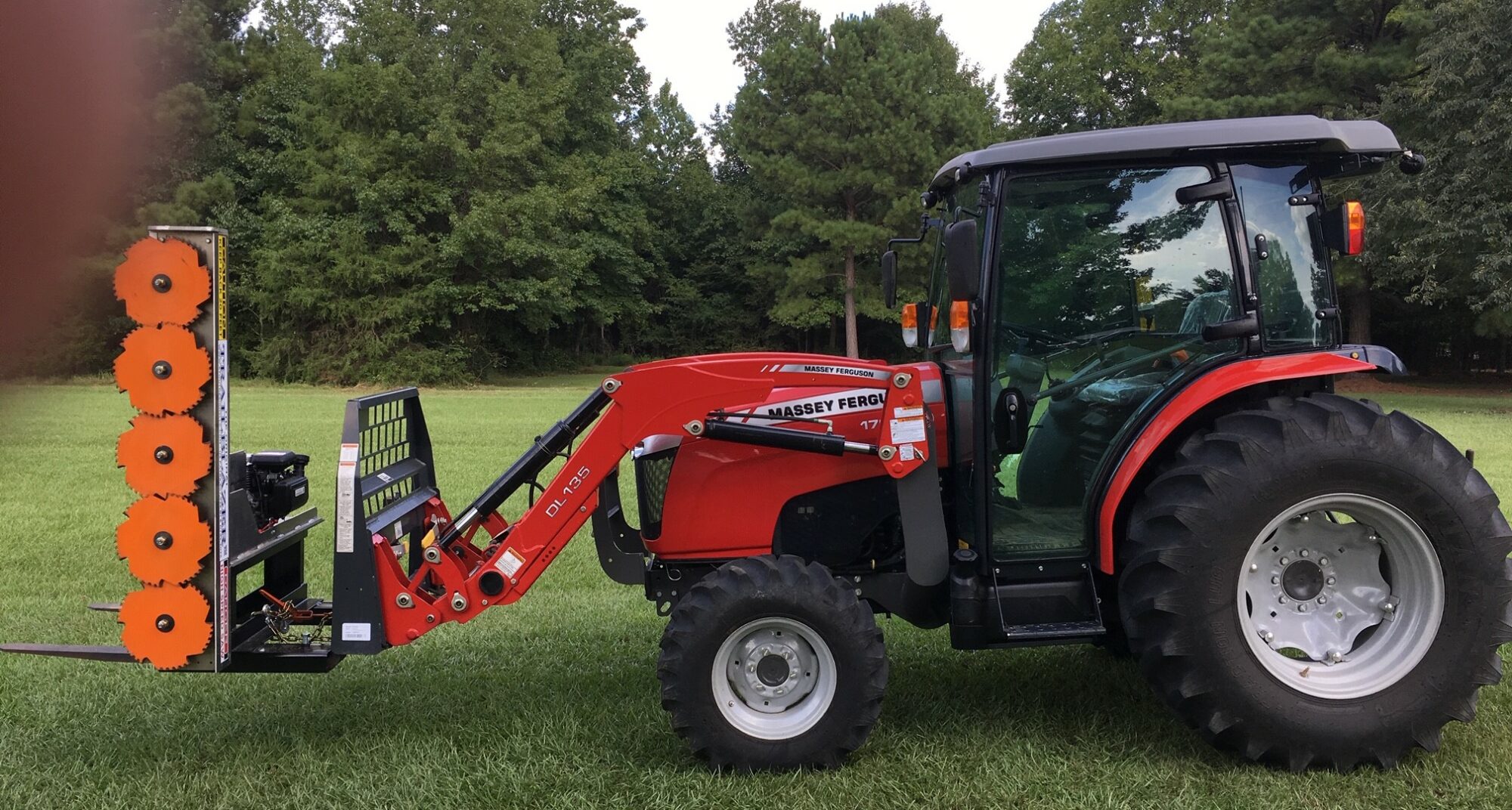

  • $3,600.00 TRAILBLAZER-HD (RH or LH),  5-Blade Unit w/ a Fixed Skid Steer Quick Attach Plate (standard blade offset is 44″-45″ from centerline of tractor or skid steer but can be reduced if needed.) Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.
  • $3,800.00 TRAILBLAZER-HD (RH or LH) 5-Blade Unit w/ a NEW Adjustable Skid Steer Quick Attach Plate  (New Design allows you to manually adjust blade offset from 36″-45″ from centerline of tractor or skid steer.)  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.  Also has a storage shelf for chainsaws and fuel.
  • $4,325.00 – TRAILBLAZER-HD(RH)-SSM-44-60-H,  5-Blade Unit mounted on a Skid Steer Type Mount.  Blades are mounted on a slide mount that is hydraulically adjustable from 44-60″ centerline of quick attach plate/tractor.  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.  Deduct $200 for removing the hydraulic cylinder allowing for only manual adjustment.  Also has a storage shelf for chainsaws and fuel.  Note:  having the slide cylinder will require a hydraulic function on your tractor to slide.

TRAILBLAZER-HYD-13- 5-Blade (Hydraulic Version for TRACTORS & SKID STEERS):

  • $4,525.00 – TRAILBLAZER-HYD(RH)-13-SSM-46ROT,  5-Blade Unit mounted on a Skid Steer Type Mount with Manual Rotation Plate allowing the cut head to be manually rotated from vertical to horizontal and almost any angle in between.  Blades are mounted at 46″ from centerline of quick attach plate/tractor.  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.
  • $4,800.00 – TRAILBLAZER-HYD(RH)-13-SSM-44-60ROT-H,  5-Blade Unit mounted on a Skid Steer Type Mount with Manual Rotation Plate allowing the cut head to be manually rotated from vertical to horizontal and almost any angle in between.  Blades are mounted on a slide mount that is hydraulically adjustable from 44-60″ centerline of quick attach plate/tractor.  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.  Deduct $200 for removing the hydraulic cylinder allowing for only manual adjustment.  Note:  having the slide cylinder will require an extra function on your tractor to cut and slide.
  • Note: all of the 13″ Diameter Blades- 5-blade saws require 7 GPM continuous flow minimum to operate.  Approximate 60″ cutting window.  Rated to cut 2.5-3″ diameter limbs.

TRAILBLAZER-HYD-18 – 3-Blade (Hydraulic Version for TRACTORS & SKID STEERS):

  • $5,125.00 – TRAILBLAZER-HYD(RH)-18-SSM-46ROT,  3-Blade Unit mounted on a Skid Steer Type Mount with Manual Rotation Plate allowing the cut head to be manually rotated from vertical to horizontal and almost any angle in between.  Blades are mounted at 46″ from centerline of quick attach plate/tractor.  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.
  • $5,400.00 – TRAILBLAZER-HYD(RH)-18-SSM-44-60ROT-H,  3-Blade Unit mounted on a Skid Steer Type Mount with Manual Rotation Plate allowing the cut head to be manually rotated from vertical to horizontal and almost any angle in between.  Blades are mounted on a slide mount that is hydraulically adjustable from 44-60″ centerline of quick attach plate/tractor.  Add $122 for a JD Hook & Pin Plate in lieu of Skid Steer Plate.  Deduct $200 for removing the hydraulic cylinder allowing for only manual adjustment.  Note:  having the slide cylinder will require an extra function on your tractor to cut and slide.
  • Note: all of the 18″ Diameter Blades- 3-blade saws require 10 GPM continuous flow minimum to operate.  Approximate 54″ cutting window.  Rated to cut 4.5-5″ diameter limbs.

CUSTOM BUILD options are available upon request.

  • TAXES MUST BE CHARGED FOR IN ARKANSAS (IN-STATE) PURCHASES
  • UNITS ARE ALWAYS IN PRODUCTION AND ARE BUILT BASED ON A BUILD LIST OF CUSTOMERS.  TYPICAL LEAD TIME IS 2-3 WEEKS (SOME UNITS ARE IN STOCK FOR IMMEDIATE SHIPMENT)  ONCE ADDED TO THE LIST.  IF YOU THINK YOU MIGHT WANT A UNIT PLEASE ASK TO BE PUT ON THE LIST.  NO OBLIGATION TO BE ADDED, NO MONEY DOWN REQUIRED.  I WILL CONTACT YOU WHEN A UNIT IS AVAILABLE TO YOUR BUILD GROUP TO FINALIZE YOUR DESIGN AND YOU CAN CANCEL AT ANY TIME.  CUSTOM BUILDS RARELY TAKE MORE THAN 6 WEEKS TO COMPLETE.
  • NOTE: OUT OF STATE BUYERS ARE RESPONSIBLE FOR THEIR OWN USE/SALES TAX
  • FREIGHT RATES VARY DEPENDING ON SHIPPING LOCATION AND THE ACTUAL WEIGHT OF YOUR UNIT AND WILL BE QUOTED BASED ON A BUSINESS ADDRESS IN YOUR AREA PRIOR TO COMPLETING ORDER. STOUT DESIGNS ALLOWS YOU TO ARRANGE FREIGHT PRIOR TO SHIPMENT. PRODUCT WEIGHS 225-950 LBS DEPENDING ON VERSION.  PALLETIZED ON A STANDARD 40″ wide X 48″ to 72″ long  PALLET X 72″ – 78″ HIGH
